anyCOMM is a technology solutions company that is focused on modernizing the way utility companies
oversee their power infrastructure and is the supplier of the anyCOMM Safety and Fire Detection
Solution (anyCOMM SAFD). The anyCOMM SAFD technology utilizes real-time monitoring of a variety of
events that can cause either power line generated or power line enhanced wildfires.
The anyCOMM SAFD system uses anyCOMM Artificial Intelligence (anyCOMM AI) to analyze images and data
collected from cameras and sensors to provide real-time situational monitoring of utility equipment
and assets. Monitored factors include imminent fire threat (fire, smoke, gas), weather concerns,
electrical line faults such as conductor line slapping, power line obstructions & contact
(vegetation, balloons, animals, etc.), transmission tower relays and guy wire tension problems.
Installation of anyCOMM technology utilizes a "set it & forget it" approach for utility company installers.
There is no field provisioning or configuration required. All anyCOMM products and services run the anyCOMM
Networking Communications Layer (ACNCL) which is a unique (patented) secure communications architecture.
The ACNCL autonomously initializes the network, configures the operating policies, handles any updates
and makes secure "closed network" connections. If anyCOMM front-end products are connected via cellular, the ACNCL
will determine the strongest data carrier (ex: AT&T, Verizon or T-Mobile) and choose the best option. The
anyCOMM products are not "tied" to any specific carrier.
Future expansion of the SAFD technology is simple. Once deployed by a utility company, the ACNCL will
automatically detect new products.
Part, NAICS Code & Description
AI CAMERA COMMUNICATIONS NODE
ANYCOMM-ACP00101 / NAICS: 334210
Central "intelligent" hardware device for safety and fire detection. Features 3 cameras, proprietary software, artificial
intelligence (Al) capabilities to detect fire, power line sway/sag, and contact with hazardous obstructions. Other features
include Wi-Fi, cellular, streetlight photo-electric control & metering and measurement of transmission tower twist/lean.
Embedded with anyCOMM ACNCL firmware and custom software.
WEATHER MONITORING STATION
ANYCOMM-ACP00201 / NAICS: 334519
Measures wind direction, wind speed & trend, barometric pressure, lightning detection with direction and distance, rain quantity,
smoke particles and gas. Embedded with anyCOMM ACNCL firmware and custom software.
BACKEND SERVER SUPPORT RACK
ANYCOMM-ACB00101 / NAICS: 334111
Integrated package of local processing, connectivity, and storage located at the customer's facilities. Each rack can support up to
200 Nodes and associated peripherals. Embedded with anyCOMM ACNCL firmware and custom software.
PORTABLE MONITORING KIT
ANYCOMM-ACB00201 / NAICS: 334118
Provides capability to connect to the anyCOMM network and display the custom graphic user interface on one provided
TV screen and two custom Android tablets. Embedded with anyCOMM ACNCL firmware and custom software.
SOLAR POWER PACK
ANYCOMM-ACB00301 / NAICS: 339999
Provides power to the Node when not feasible to connect directly to grid power. Has an associated 100w solar panel and once
charged, provides 50 amps of battery power. Includes an 18-watt LED spotlight used to illuminate the power lines at night
for camera snapshots. Embedded with anyCOMM ACNCL firmware and custom software.
GUY WIRE TENSION LOAD CELL (4 PK)
ANYCOMM-ACP00401 / NAICS: 334513
Measures tension on the IGS transmission tower guy wires and communicates to the anyCOMM data center. Includes a camera,
accelerometer and magnetometer to detect potential tower failures or vegetation encroachment.
Embedded with anyCOMM ACNCL firmware and custom software.
TRI-CAM
ANYCOMM-ACP00501 / NAICS: 334310
Integrated option for Nodes and Solar Power Packs. Provides 3 separate views around the perimeter of transmission towers,
distribution poles, etc. Unit based on Sony IMX415 sensor and has integrated Pan/Tilt/Zoom capability.
Embedded with anyCOMM ACNCL firmware and custom software.
FIRE DETECTION HARDWARE AND SOFTWARE
ANYCOMM-ACF00101 / NAICS: 541511
A suite of custom hardware and software that utilizes Al (artificial intelligence) techniques to determine the presence
of smoke or a potential fire across the entire network.
CELLULAR CONNECTIVITY
ANYCOMM-ACC00101 / NAICS: 517911
One year of Cellular Connectivity for each Node or Guy Wire Tension Load Cell (4 pk).
Connectivity is managed by the anyCOMM ACNCL.
CMS SOFTWARE
ANYCOMM-ACS00101 / NAICS: 541511
One Year of Control and Management System Software (CMS) for Each Node, that is
embedded with anyCOMM ACNCL firmware and custom software.
NODE MONITORING SERVICES
ANYCOMM-ACM00101 / NAICS: 518210
One year of Monitoring Services for each Node or Guy Wire Tension Load Cell (4 pk).
The monitoring provides a backend interface to the anyCOMM ACNCL firmware and custom software.
TRI-CAM MONITORING SERVICES
ANYCOMM-ACM00201 / NAICS: 518210
One year of Monitoring Services for each Tri-Cam.
The monitoring provides a backend interface to the anyCOMM ACNCL firmware and custom software.
Broad General Specifications
AI CAMERA COMMUNICATIONS NODE
ANYCOMM-ACP00101 / NAICS 334210
The front end of the anyCOMM solution is an "open architecture", feature-rich communications "node" running the anyCOMM Networking
Communications Layer (ACNCL). It is a field-installable, direct replacement for the standard outdoor photocell that is typically
installed on top of streetlights, distribution poles or other fixtures. No changes to a utility's existing infrastructure are
required to deploy the anyCOMM solution. The node is 100% self-contained, and it works on almost any fixture with power sources from 90-305 VAC.
- ENCLOSURE
- Gray Polycarbonate (PC) resin 10% glass fiber filled
- Keeps out dust and water in extreme conditions
- NEMA type 4X compliant
- UL industrial controls directive compatible
- Non-chlorinated & non-brominated flame retardant construction
- Suitable for ultraviolet light and water exposure
- High impact resistance
- ELECTRICAL CONNECTION
- ANSI C136.41 compliant
- Mates with standard 3, 5 & 7 position twist lock photocell sockets
- Voltage requirement : 90-305 VAC
- Operating temperature : -20 to 85 Celsius
- Switched relay contacts : 15A max or 5A with inductive load
- Dimming : 0-10 VDC, PWM
- REPLACEMENT PHOTOCELL
- Direct field replacement for standard photocells
- Four independent automated lighting sensors
- Initial turn on at 3 footcandles, off at 8 footcandles (remotely adjustable)
- Initial time delay set to 45 seconds (remotely adjustable)
- METERING SPECIFICATIONS
- Cirrus Logic CS54XX (same as most smart meters)
- Utility company grade data with high accuracy
- Sub-meter capable for loads up to 30A (via separate modules)
- Zero setup or provisioning
- NETWORK CONNECTIVITY
- Dual Wi-Fi modems for both front-side and backbone connectivity
- Standards: Wi-Fi 802.11a/b/g/n/ac
- Max range to another node up to 1,200 feet
- LTE Module : Bands B1 thru B41
- Zigbee : System On Chip
- GNSS (Global Positioning System)
WEATHER MONITORING STATION
ANYCOMM-ACP00201 / NAICS: 334519
Measures wind speeds up to 160 mph and updates every 10 seconds to fully capture wind gusts and maximum wind speeds.
Direction is reported in degrees.
Uses a rain gauge with a wide collector to maximize measurement accuracy. Rain is
measured at 0.01 in (0.25 mm) intervals and updated every 30 seconds.
Detects sun exposure
and light conditions up to 120,000 lumens and UV index 1-15, reported every 30 seconds.
The temperature sensor has
an internal fan that disperses radiant heat and measures temperatures from -40° F to 158° F
within 1° F and 2% humidity accuracy.
Can detect a broad range of gases such
as volatile organic compounds (VOC), smoke, LP gas, etc...
- TEMPERATURE RANGE
- -40 to 158° F
- HUMIDITY RANGE
- 1% - 99% RH
- WIND SPEED
- 0 - 160 mph
- RAIN
- .01" intervals
- LIGHT INTENSITY
- to 120,000 Lumens
GUY WIRE TENSION LOAD CELL (4 PK)
ANYCOMM-ACP00401 / NAICS: 334513
The anyCOMM Load Cell system provides a monitoring and surveillance system
for "cables under tension". The sensors can measure cable tension and communicate the measured tension to
the anyCOMM backend to manage identification and reporting of status and/or faults in parameters measured by the Load Cell sensor package.
Further, the backend can perform analysis, organize data, and/or create reports to determine whether the parameters indicate
erosion of performance predictive of a failure mode, up to and including catastrophic failure.
There are two versions of
the anyCOMM Load Cell field-unit, the first is for a "Cable Under Tension", and the second is for a "High-Voltage Line".
- SENSORS
- Tension 1 to 12,000lbs
- Five-axis motion accelerometer/magnetometer
- COMMUNICATIONS MODULE
- Wi-Fi modem for both front-side and backbone connectivity
- Standards: Wi-Fi 802.11a/b/g/n/ac
- Max range to another load cell or node up to 1,200 feet
- LTE Module : CAT 0-1 (AT&T, Verizon & T-Mobile)
- GNSS (Global Positioning System)
- CAMERA
- The Load Cell has a digital camera and lens system that can capture high-speed frames at HD resolution, at fixed or variable
rates determined by the need of the application or during a time frame as specified by instructions from the anyCOMM Network Center, for example
during a wildfire. Optionally, additional IR- or UV-capable cameras may be included. The camera in the Load Cell can provide
viewing lengthwise along the cable to look for cable aberrations over time.
- DISPLAY
- Each Load Cell includes a display with a unique UPC and ID, and a communication means to the anyCOMM Network Center for data collection
and analysis. The UPC is visible on the exterior of the sensor package to facilitate an authorized
installer activating, inspecting and/or communicating with the device via a handheld device (i.e. cell phone or tablet).
- INSTALLATION
- The Load Cell is simple to install, either by two connecting bolts attaching it to a cable or a clamping mechanism around a high
voltage line. Easy start-up is enabled via UPC scan by the installer with a cellphone or other handheld device, which instantly
and automatically provides the Load Cell's location to the anyCOMM Network Center. Additional
start-up activities include ascertaining correct functioning of all sensors and communications.
SOLAR POWER PACK
ANYCOMM-ACB00301 / NAICS: 339999
The Solar Power Pack is a solution to provide power to the Node and Tri-Cam when terrestrial power is not available. The Pack consists of
a 100 watt solar panel and 50 amps of lithium battery power plus a dedicated CPU running custom anyCOMM software with a variety of onboard
sensors.
The Solar Power Pack typically installs on utility transmission towers high above the powerlines or on distribution poles
without stepdown transformers.
The Pack provides an ANSI C136.41 7-pin socket on the top of the unit for the Node to quickly attach. Mounting to the tower only
requires 4 bolts.
- BATTERY ARCHITECTURE
- Lithium iron phosphate (LiFePO4)
- 12 VDC @ 50 AMPS storage capacity
- Rechargeable over 3000 times
- Deep cycle for longer life
- Integrated battery management system
- MPPT SOLAR CHARGE CONTROLLER / ARRAY
- Fast maximum power point tracking
- Multi-stage adaptive charge algorithm
- Over temp & short protection
- UL 1741, IEC 62109-1 compliant
- Monocrystalline 100 watt bifacial panel
- LOCAL CPU & CUSTOM SOFTWARE
- Dual Core
- Passes solar & battery data to node
- Onboard temp & humidity sensors
- Up to 150 watts of 120 VAC
- Integrated air sampling sensor
- Field upgradable features

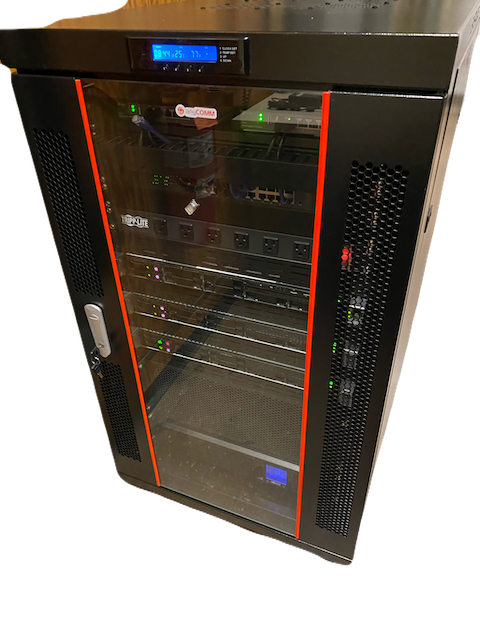

BACKEND SERVER SUPPORT RACK
ANYCOMM-ACB00101 / NAICS: 334111
The Backend Server Support Rack is the integration point between anyCOMM and the utility customer. The solution provides
a closed IT network to the front-end products and peripherals with strong encryption.
This is a private network and does not require the cloud for operation.
- MULTIPLE DATA SERVERS
- HPE ProLiant
- Intel Xeon Processors & NVIDEA GPUs
- Significant Memory & Storage
- Multiple hard drive bays for AI event storage
- Expandable to handle thousands of deployed anyCOMM products
- ANYCOMM AI SOFTWARE
- Maintains connection to products
- Coordinates firmware updates
- Handles trigger management
- Event notifications
™
